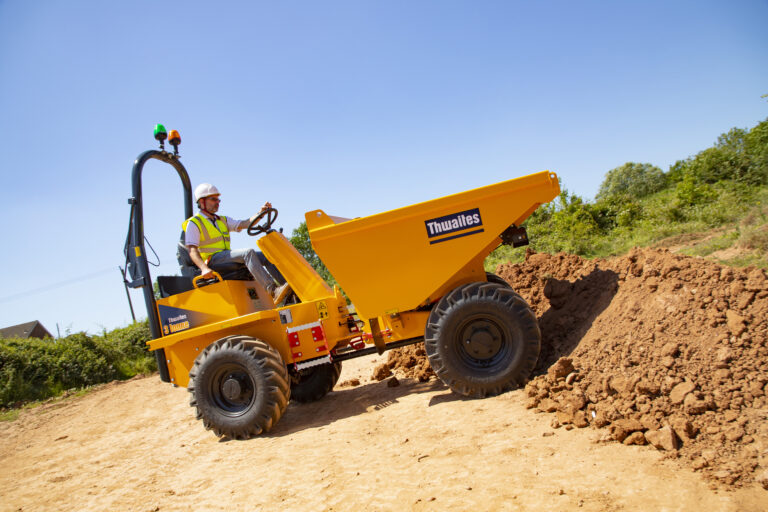

Thwaites 3 Tonne Front Tip
Product Features
The Thwaites 3 Tonne Front Tip, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Powered by an 18.1 kW 3-cylinder Yanmar engine, delivering 107 Nm max torque for optimum traction and control, this machine is driven by a Hydrostatic transmission, making it simple and straightforward to operate. Thwaites 3 Tonne machines are available in a range of configurations to suit your needs including: › Hi Swivel › Power Swivel Robust and reliable, this machine has a fully welded 5 mm steel plate skip with reinforced box section fitted to minimise skip damage. Each dumper is supplied as standard with a Spring Activated Hydraulic Release (SAHR) Handbrake, ROPS frame, towing bracket reverse alarm and LED beacons. Full LED road lights including daylight running lights can be fitted as an optional extra. Easy to service and maintain with market leading residuals.
Engine
› Yanmar 3TNV88-BWWA, water-cooled, 3-cylinder water cooled direct-injection diesel
› Power 18.1 kW/24.3 bhp at 2000 rpm
› Torque 107 Nm (78.9 lbf ft)
| Name | Thwaites 3 Tonne Front Tip |
|---|---|
| Unladen | 2,080 kgs |
| Shipping | 1,988 kgs |
| Name | Thwaites 3 Tonne Front Tip |
|---|---|
| Max Safe Load | 3,000 kgs |
| Heaped | 1,680 litres |
| Struck | 1,350 litres |
| Water | 1,060 litres |
| Name | Thwaites 3 Tonne Front Tip |
|---|---|
| Fuel | 24.5 litres |
| Hydraulic | 25 litres |
| Name | Thwaites 3 Tonne Front Tip |
|---|---|
| 9.2 m |
