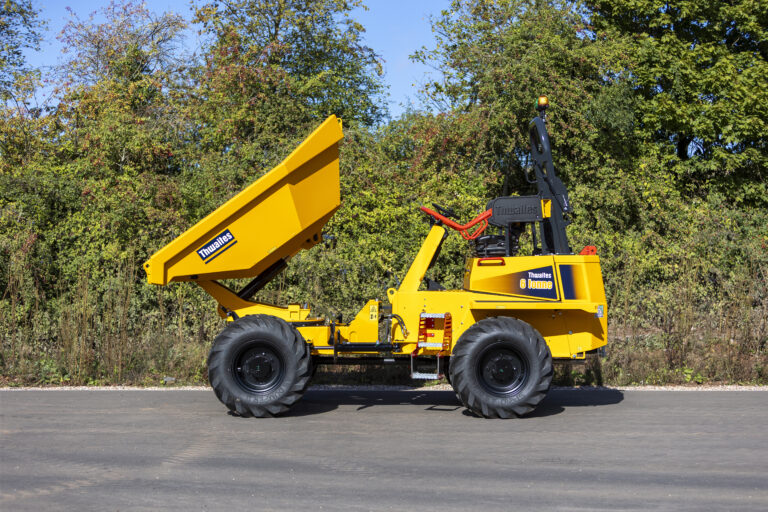

Thwaites 6 Tonne Front Tip ROPS+

Thwaites 6 Tonne Front Tip ROPS+

Thwaites 6 Tonne Front Tip ROPS+ previewThwaites 6 Tonne Front Tip ROPS+

Product Features

The Thwaites 6 Tonne Front Tip, Stage V Hydrostatic dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Front Tip dumpers allow the machine to be easily and safely unloaded, with a straightforward tipping action that places the full bucket of spoil exactly where it is required. Powered by a 3.3L Yanmar turbo diesel engine fitted with a DPF to comply with EU stage V emission regulations, you benefit from 53.7 kW peak power, 295 Nm of torque and no AdBlue requirement. Thwaites 6 Tonne machines are available in a range of configurations to suit your needs including: › 6 Tonne Front Tip with Cab › 6 Tonne Power Swivel with Cab › 6 Tonne Power Swivel ROPS+ A Spring Activated Hydraulic Release (SAHR) Handbrake, LED screen displaying 150° around machine visibility, hi-vis steps, amber and green LED beacons and Inclinometer are all fitted as standard. Optional extras include LED road lights, mirrors, and GPS speedometer. ROPS+ is an extension of the Roll Over Protection System, (ROPS). Made from the same high tensile steel, the wrap around design places the operator in the optimum position to minimise risk, should a machine roll over occur.

kubota previewkubota
1
2
3
4
5

Engine

› Yanmar 4TNV98CT, water-cooled, 4-cylinder, fuel injected turbo diesel with after treatment Diesel Particulate filter

› Power 53.7kW / 72 bhp at 2100 rpm

› Torque 295Nm (217.5 lbs ft)

Engine

› Yanmar 4TNV98CT, water-cooled, 4-cylinder, fuel injected turbo diesel with after treatment Diesel Particulate filter

› Power 53.7kW / 72 bhp at 2100 rpm

› Torque 295Nm (217.5 lbs ft)

Specifications

Weight
Name Thwaites 6 Tonne Front Tip ROPS+
Unladen 3,980 kgs
Shipping 4,116 kgs
Name Thwaites 6 Tonne Front Tip ROPS+
Max Safe Load 6,000 kgs
Heaped 3,400 litres
Struck 2,525 litres
Water 1,925 litres
Name Thwaites 6 Tonne Front Tip ROPS+
Fuel 72 litres
Hydraulic 50 litres
Name Thwaites 6 Tonne Front Tip ROPS+
12.6 m
