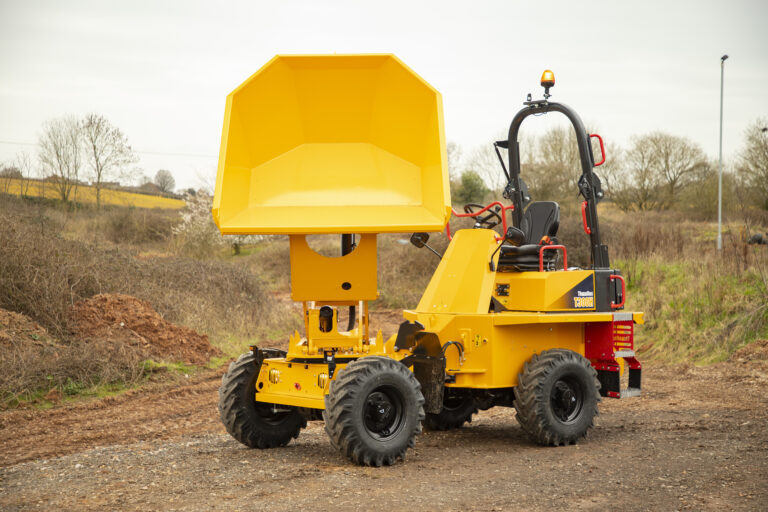

Thwaites T300H 3 Tonne Hi Swivel

Thwaites T300H 3 Tonne Hi Swivel

Thwaites T300H 3 Tonne Hi Swivel previewThwaites T300H 3 Tonne Hi Swivel

Product Features

The Thwaites T300H Hi Swivel, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Powered by a 33.3 kW Yanmar engine, delivering 142 Nm max torque for optimum traction and control, this machine is driven by a Hydrostatic transmission, making it simple and straightforward to operate. This sturdy and robust machine has a fully welded 5 mm steel plate skip to the mouth and sides with reinforced box section fitted to minimise skip damage. The Hi-Swivel dumper enables a 90° rotation left and right, with an additional 590mm of height at the tipping point, providing contractors and hirers with additional versatility and improved performance. Each T300H Hi Swivel dumper is supplied as standard with a Spring Activated Hydraulic Release (SAHR) Handbrake, ROPS frame, towing bracket, full LED road lights including daylight running lights, LED beacon and a reverse alarm. Optional extras include road mirrors, wheel nut indicators, GPS speedometer and a Trackunit. Easy to service and maintain with market leading residuals.

kubota previewkubota
1
2
3
4
5

Engine

› Yanmar 3TNV86CHT, water-cooled, 3-cylinder, charged air cooled turbo common rail diesel with direct-injection and DPF

› Power 33.3 kW/45 bhp at 2600 rpm

› Torque 142 Nm (105 lbf ft).

Engine

› Yanmar 3TNV86CHT, water-cooled, 3-cylinder, charged air cooled turbo common rail diesel with direct-injection and DPF

› Power 33.3 kW/45 bhp at 2600 rpm

› Torque 142 Nm (105 lbf ft).

Specifications

Weight
Name Thwaites T300H 3 Tonne Hi Swivel
Unladen 3,200 kgs
Shipping 3,090 kgs
Name Thwaites T300H 3 Tonne Hi Swivel
Max Safe Load 3,000 kgs
Heaped 1,760 litres
Struck 1,300 litres
Water 1,050 litres
Name Thwaites T300H 3 Tonne Hi Swivel
Fuel 44 litres
Hydraulic 44 litres
Name Thwaites T300H 3 Tonne Hi Swivel
8 m
