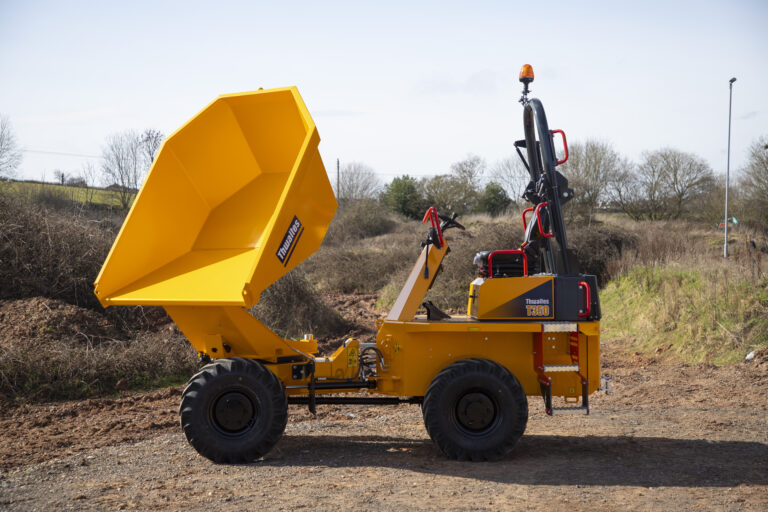

Thwaites T350 3.5 Tonne Power Swivel


Product Features
The Thwaites T350 Power Swivel, Stage V dumper is manufactured with contractors and hirers in mind – ensuring operator safety, reducing risk on site and improving performance. Powered by a 33.3 kW Yanmar engine, delivering 142 Nm max torque for optimum traction and control, this machine is driven by a Hydrostatic transmission, making it simple and straightforward to operate. This sturdy and robust machine has a fully welded 5 mm steel plate skip to the mouth and sides with reinforced box section fitted to minimise skip damage. The Power Swivel skip enables a 90° rotation left and right, allowing the machine easier access to tip loads in restricted areas, giving the operator greater control and reducing risk on site. Each T350 Power Swivel dumper is supplied as standard with a Spring Activated Hydraulic Release (SAHR) Handbrake, ROPS frame, towing bracket, full LED road lights including daylight running lights, LED beacon and a reverse alarm. Optional extras include road mirrors, wheel nut indicators, GPS speedometer and a Trackunit. Easy to service and maintain with market leading residuals.


Engine
› Yanmar 3TNV86CHT, water-cooled, 3-cylinder, charged air cooled turbo common rail diesel with direct-injection and DPF
› Power 33.3 kW/45 bhp at 2600 rpm
› Torque 142 Nm (105 lbf ft)
| Name | Thwaites T350 3.5 Tonne Power Swivel |
|---|---|
| Unladen | 3,020 kgs |
| Shipping | 2,910 kgs |
| Name | Thwaites T350 3.5 Tonne Power Swivel |
|---|---|
| Max Safe Load | 3,500 kgs |
| Heaped | 1,870 litres |
| Struck | 1,480 litres |
| Water | 1,015 litres |
| Name | Thwaites T350 3.5 Tonne Power Swivel |
|---|---|
| Fuel | 44 litres |
| Hydraulic | 44 litres |
| Name | Thwaites T350 3.5 Tonne Power Swivel |
|---|---|
| 8 m |
