TR270B

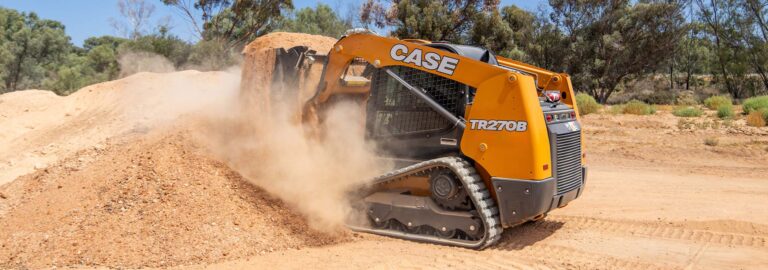

CASE TR270B Track Loader

AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE TR270B is a versatile radial-lift compact track loader engineered specifically for heavy digging, prying and pushing applications. Powered by a 74-gross-horsepower engine that produces 232 lb-ft of peak torque, this robust 8,270-pound machine delivers a solid 2,700-pound rated operating capacity at 50 percent. This model features a maintenance-free Tier 4 Final emissions system that relies entirely on a diesel oxidation catalyst, meaning there are no fluids to add and no particulate filters to replace. The unique radial geometry ties the loader arm directly into the chassis for superior pushing strength and provides maximum reach at head height for effortless pallet loading.

Model Comparison

Finance Offers

Download Brochure

55 kW (73.8 hp)
67 kW (89.8 hp)
55 kW (73.8 hp)
55 kW (73.8 hp)
67 kW (89.8 hp)
85 kW (114.0 hp)

Product Features

For challenging groundwork, operators can rely on a 7,270-pound bucket breakout force and a solid 5,400-pound tipping load to easily power through compacted materials. The standard auxiliary hydraulics provide 24.2 gallons per minute to operate a wide variety of tools, while an optional high-flow system increases that output to 32.4 gallons per minute for more demanding attachments. Stability on unpredictable terrain is ensured by a rigid track frame and 12.6-inch tracks that maintain excellent ground contact in muddy or sandy conditions. Inside the spacious and pressurised cabin, an all-new 8-inch LCD display allows you to easily customise electro-hydraulic controls and monitor the integrated backup camera.

Visibility and Comfort

Enjoy industry-leading visibility with a cab-wide rearview mirror, expansive windows and a backup camera that operates in both forward and reverse. The operator environment is one of the widest available, featuring redesigned controls, convenient cupholders and strategically placed air vents to maximise your comfort and legroom during long shifts.

Visibility and Comfort

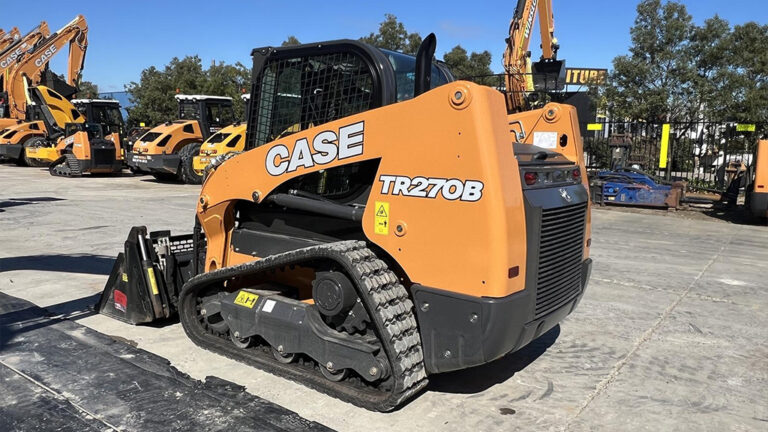

Compact Site Access

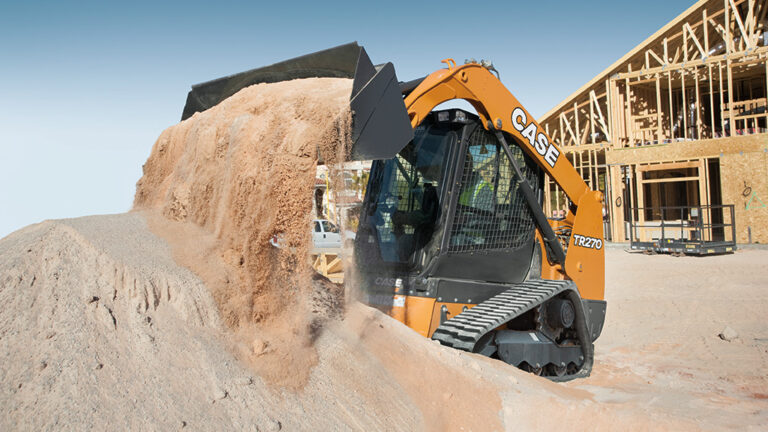

Efficient Material Handling

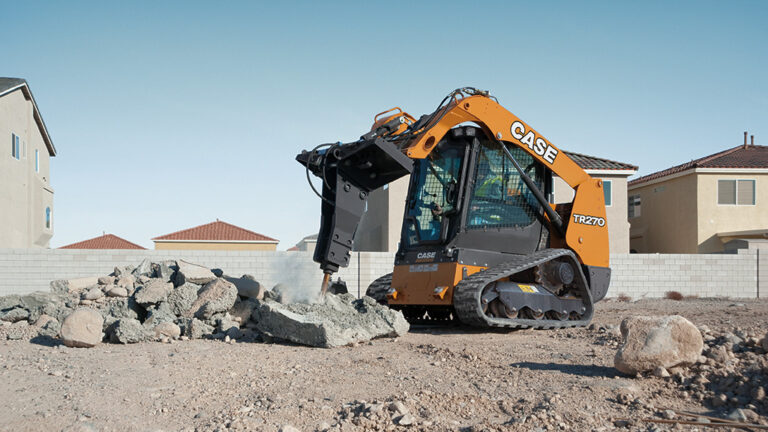

Maximised Tool Performance

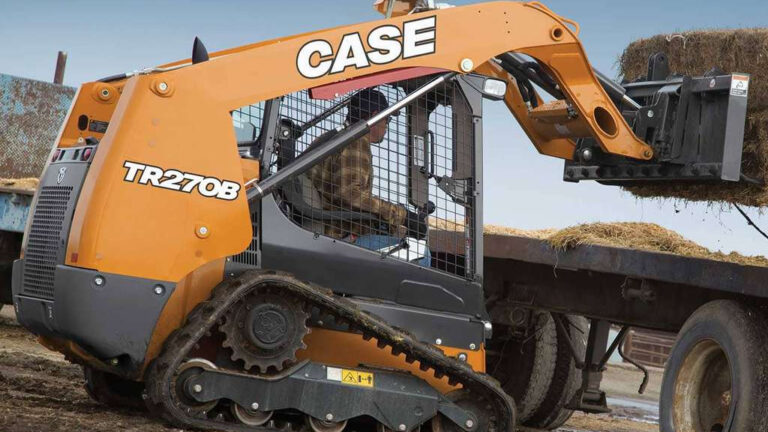

Agricultural Versatility

Specifications

Download Brochure

Specifications

Name	TR270B
Lift Configuration	Radial
Engine	FPT F5H FL463A*G001
Gross Horsepower	55 kW (73.8 hp)
Net Horsepower	51 kW (68.4 hp)
Peak Torque	314 Nm
Displacement	3.4 L
Emissions Certification* Solutions	Tier 4 Final Certified (CEGR, DOC)
Rated Operating Capacity (ROC) 35%	857 kg
Rated Operating Capacity (ROC) 50%	1,225 kg
Tipping Load	2,449 kg
Bucket Breakout Force	32.3 kN
Standard Auxiliary Hydraulics	91.5 L/min
High-Flow Auxiliary Hydraulics	122.6 L/min
Operating Weight	3,751 kg

Dimensions

Name	TR270B
Height to Bucket Hinge Pin	3.18 m
Dump Height with Foundry/ Excavating Bucket	2.56 m
Height to Top of ROPS	2 m
Overall Length with Foundry/ Excavating Bucket	3.28 m
Track Width	320 mm
