TR340B

CASE TR340B Track Loader

AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE TR340B is a powerful radial-lift compact track loader engineered specifically for heavy-duty digging, prying and pushing applications. Boasting a 90-gross-horsepower engine that delivers 282 lb-ft of peak torque, this robust 10,000-pound machine provides exceptional strength with a 3,400-pound rated operating capacity at 50 percent. This model utilises a Tier 4 Final Selective Catalytic Reduction emissions system that requires only diesel exhaust fluid and eliminates the need to replace a particulate filter. The unique radial geometry ties the arm directly into the chassis for maximum digging power and offers excellent reach at head height, making it perfect for loading and unloading pallets from trucks.

Model Comparison

Finance Offers

Download Brochure

55 kW (73.8 hp)
67 kW (89.8 hp)
55 kW (73.8 hp)
55 kW (73.8 hp)
67 kW (89.8 hp)
85 kW (114.0 hp)

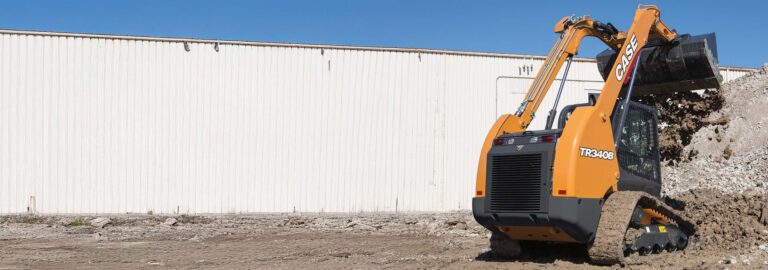

Product Features

For demanding environments, the TR340B boasts an impressive 8,700-pound bucket breakout force to easily pry up compacted earth. Operators can maximise their tool efficiency with optional high-flow auxiliary hydraulics that deliver up to 37.6 gallons per minute. Stability on steep or muddy sites is guaranteed by a rigid-track frame and 17.7-inch tracks that provide excellent ground contact and traction. Inside the spacious and pressurised cab, a new 8-inch LCD display gives you customisable electro-hydraulic control settings and a clear view from the standard backup camera.

Visibility and Comfort

Operators benefit from a low entry threshold and a sloped rear hood, which together provide unhindered sightlines straight down to the bucket and the ground behind you. The expansive cabin environment features upgraded joysticks, strategically placed air vents and convenient cupholders to keep the operator relaxed during long shifts.

Visibility and Comfort

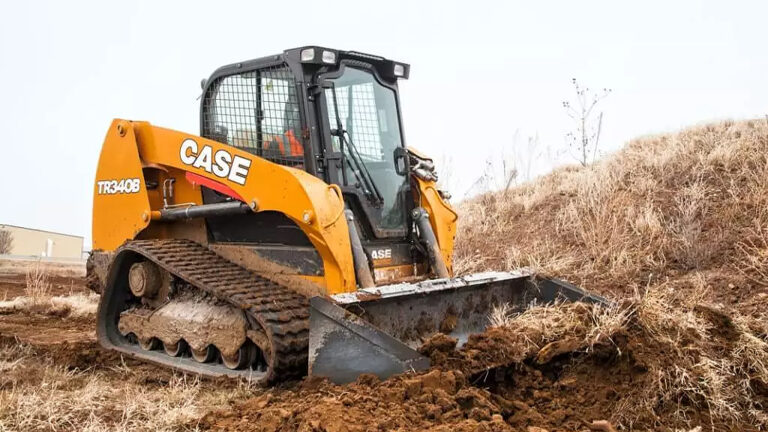

Confident Earthmoving

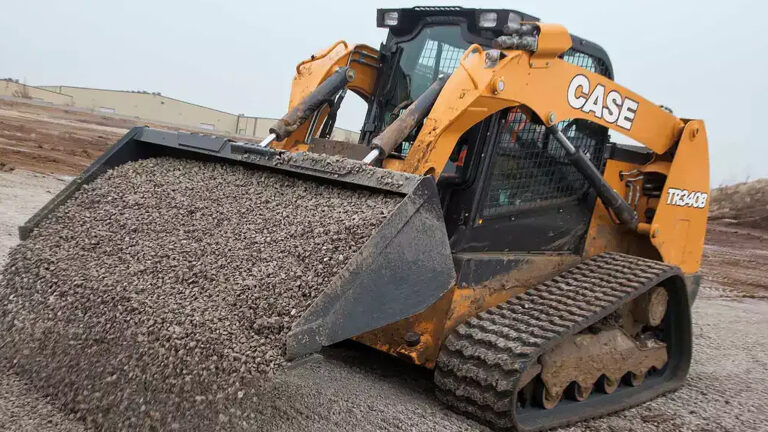

Seamless Operation

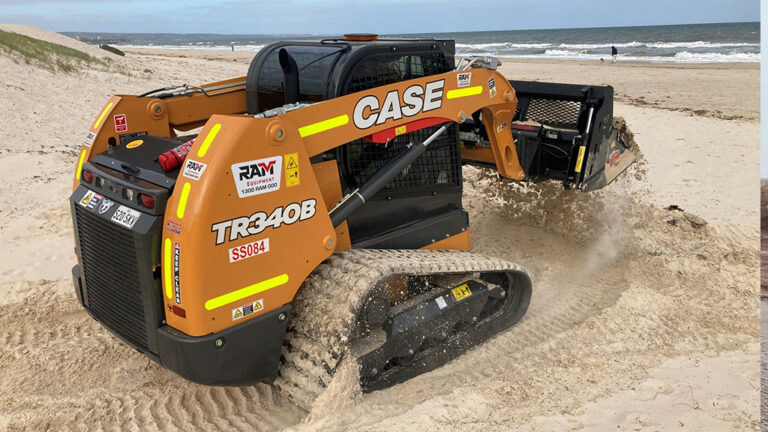

Superior Traction

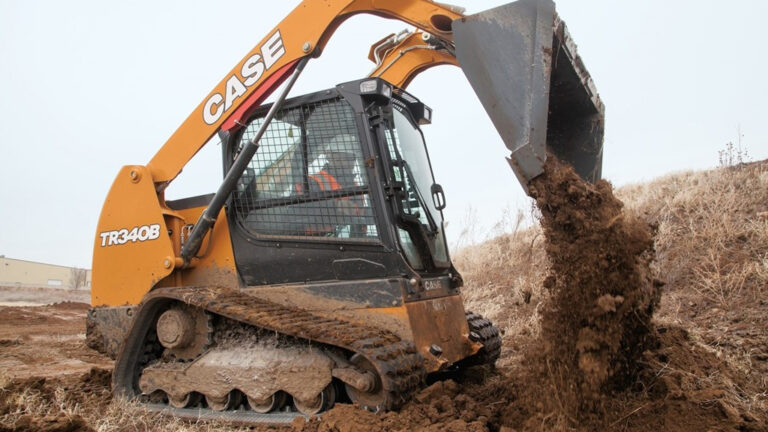

Elevated Clearances

Specifications

Download Brochure

Specifications

Name	TR340B
Lift Configuration	Radial
Engine	FPT F5B FL413 D*C001
Gross Horsepower	67 kW (89.8 hp)
Net Horsepower	63 kW (84.5 hp)
Peak Torque	383 Nm
Displacement	3.4 L
Emissions Certification* Solutions	Tier 4 Final Certified (CEGR, DOC)
Rated Operating Capacity (ROC) 35%	1,080 kg
Rated Operating Capacity (ROC) 50%	1,542 kg
Tipping Load	3,084 kg
Bucket Breakout Force	38.7 kN
Standard Auxiliary Hydraulics	91.5 L/min
High-Flow Auxiliary Hydraulics	142.5 L/min
Operating Weight	4,536 kg

Dimensions

Name	TR340B
Height to Bucket Hinge Pin	3.22 m
Dump Height with Foundry/ Excavating Bucket	2.59 m
Height to Top of ROPS	2.04 m
Overall Length with Foundry/ Excavating Bucket	3.62 m
Track Width	450 mm
