TV450B

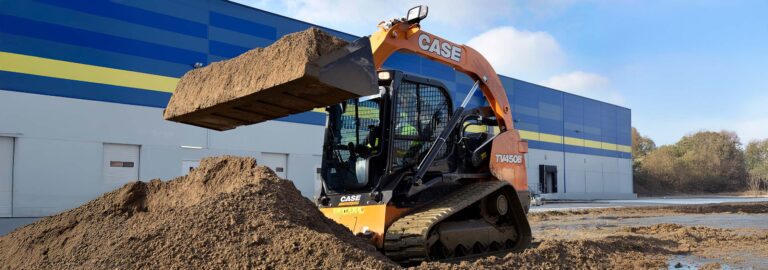

CASE TV450B Track Loader

AVAILABLE FROM OUR NEWCASTLE AND MELBOURNE BRANCHS ONLY: The CASE TV450B compact track loader is a heavy-duty, vertical-lift machine engineered specifically for high-capacity lift-and-carry and truck-loading applications. Powered by a 90-gross-horsepower engine that delivers 282 lb-ft of peak torque, this model brings serious muscle to the job site with a rated operating capacity of 4,500 pounds at 50 percent. To keep you running efficiently, it utilizes a Tier 4 Final Selective Catalytic Reduction (SCR) emissions solution; this means it is a maintenance-free system that simply requires adding Diesel Exhaust Fluid (DEF) and completely eliminates the need to replace a Diesel Particulate Filter (DPF). Inside the nearly three-foot-wide cab, operators benefit from an incredibly roomy, pressurized environment designed to reduce noise and keep dust out. The TV450B features an advanced 8-inch LCD multi-function display that puts crucial machine data and a split-screen backup camera right at your fingertips for industry-leading visibility. Operating the machine is smoother than ever thanks to adjustable electro-hydraulic controls, which allow operators to easily switch between ISO and H operating patterns and dial in the machine's responsiveness to perfectly match the task at hand.

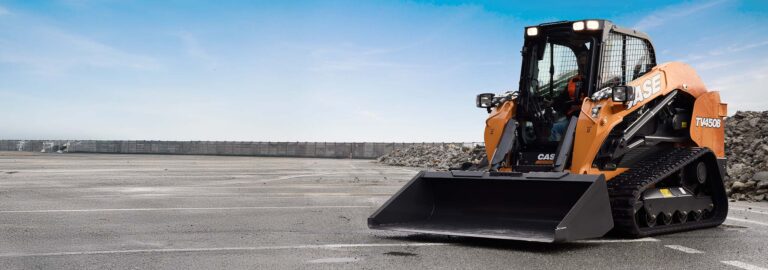

Product Features

This versatile loader utilizes a specialized dual arm geometry that ensures the bucket travels straight up, granting maximum reach when fully raised. With a 131.6-inch height to the bucket hinge pin, it allows operators to effortlessly deposit heavy materials directly into the center of high-sided transport vehicles. Navigating muddy or sandy terrain is a breeze thanks to the rigid-frame, dozer-style undercarriage and standard 17.7-inch tracks that provide exceptional stability on steep slopes. When it is time for routine service, a heavy-duty rear door opens to reveal conveniently grouped daily checkpoints, and the entire operator module can be tilted forward to easily inspect the powertrain.

Visibility and Comfort

Enjoy industry-leading visibility thanks to a cab-wide rearview mirror, massive front and side windows, 360-degree lighting, and a new backup camera that functions in both forward and reverse. A low-sloping rear hood and a low entry threshold provide excellent, unobstructed sightlines straight down to the bucket. Inside, you will find one of the widest cabs on the market, complete with redesigned controls, optimized air vents, and extra legroom to keep you comfortable from clock-in to clock-out.

Visibility and Comfort

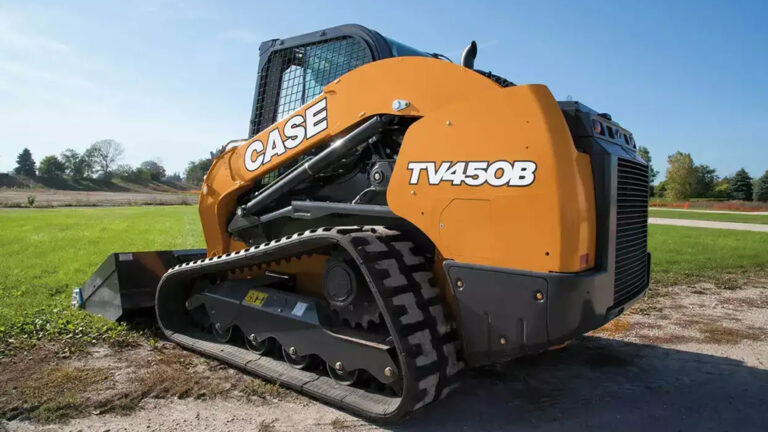

Engineered for Durability

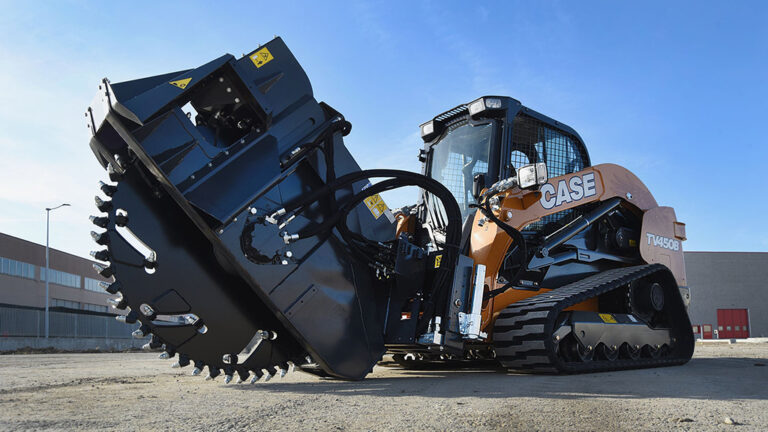

Optimised Attachment Performance

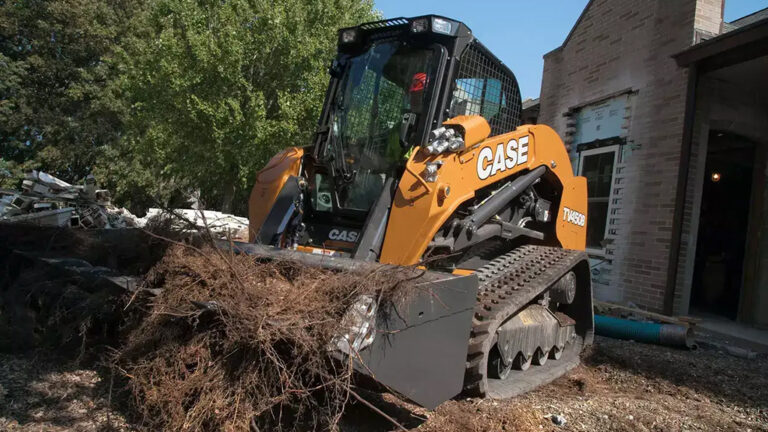

Seamless Tool Swapping

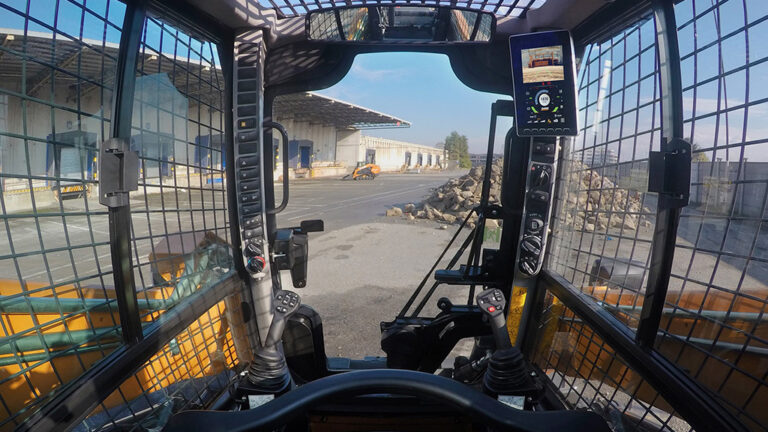

Intelligent Machine Management

Specifications

Download Brochure

Specifications

Name	TV450B
Lift Configuration	Vertical
Engine	FPT F5B FL413 D*C001
Gross Horsepower	67 kW (89.8 hp)
Net Horsepower	63 kW (84.5 hp)
Peak Torque	383 Nm
Displacement	3.4 L
Emissions Certification* Solutions	Tier 4 Final Certified (CEGR, SCR)
Rated Operating Capacity (ROC) 35%	1,429 kg
Rated Operating Capacity (ROC) 50%	2,041 kg
Tipping Load	4,082 kg
Bucket Breakout Force	41.8 kN
Standard Auxiliary Hydraulics	91.5 L/min
High-Flow Auxiliary Hydraulics	149 L/min
Operating Weight	4,813 kg

Dimensions

Name	TV450B
Height to Bucket Hinge Pin	3.34 m
Dump Height with Foundry/ Excavating Bucket	2.65 m
Height to Top of ROPS	2.04 m
Overall Length with Foundry/ Excavating Bucket	3.67 m
Track Width	450 mm
