TV620B

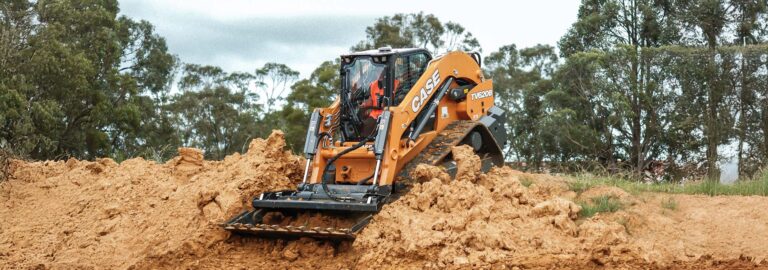

Case Track Loader TV620B

Model Comparison Product Features Specifications
Case Track Loader TV620B previewCase Track Loader TV620B
The CASE TV620B is the largest and most powerful compact track loader ever built*. Power the hardcore attachments. Load the high trucks. Dig in to the toughest earthmoving applications. Industry-leading performance includes rated operating capacity (6,200 pounds), breakout force (12,907 pounds bucket; 12,084 pounds lift), and track length on the ground (74 inches). With this much power and performance, we’re also providing more standard features than ever before — including electro-hydraulic controls, high-flow hydraulics, automatic Ride Control and one-way self-leveling, a programmable hydraulically reversing fan, LED lights, the new SiteConnect Module and one year of CASE SiteWatch telematics. There’s never been a compact track loader like the TV620B — stacked with this many standard and premium features — and there may never be another one like it.

Model Comparison

Finance Offers
Download Brochure
  • 55 kW (73.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 55 kW (73.8 hp)
  • 67 kW (89.8 hp)
  • 85 kW (114.0 hp)

Product Features

kubota previewkubota
1
2
3
4

Extreme Control Comes Standard

The CASE TV620B comes standard with adjustable electro-hydraulic controls. This allows operators to easily set total machine responsiveness to low, moderate or aggressive, or independently set tilt, lift and drive speed, as well as loader arm and drive control to best meet the demands of the job. This is set simply through the LCD multi-function display in the cab, which also comes standard.

Extreme Control Comes Standard

The CASE TV620B comes standard with adjustable electro-hydraulic controls. This allows operators to easily set total machine responsiveness to low, moderate or aggressive, or independently set tilt, lift and drive speed, as well as loader arm and drive control to best meet the demands of the job. This is set simply through the LCD multi-function display in the cab, which also comes standard.

Specifications

Download Brochure
Specifications
Name TV620B
Lift Configuration Vertical
Engine FPT F5B FL413 D*C005
Gross Horsepower 85 kW (114.0 hp)
Net Horsepower 85 kW (114.0 hp)
Peak Torque 460 Nm
Displacement 3.4 L
Emissions Certification* Solutions Tier 4 Final Certified (CEGR, SCR)
Rated Operating Capacity (ROC) 35% 1,969 kg
Rated Operating Capacity (ROC) 50% 2,812 kg
Tipping Load 5,625 kg
Bucket Breakout Force 57.4 kN
Standard Auxiliary Hydraulics 91.5 L/min
High-Flow Auxiliary Hydraulics 157 L/min
Operating Weight 7,303 kg
Name TV620B
Height to Bucket Hinge Pin 3.56 m
Dump Height with Foundry/ Excavating Bucket 2.77 m
Height to Top of ROPS 2.15 m
Overall Length with Foundry/ Excavating Bucket 4.04 m
Track Width 450 mm
