B3150SUHD

/ B3150HD

/ B3150HDCC

B50 Series ROPS & CAB tractors

Model Comparison Product Features Attachments Specifications Implements

Agriculture

Tractors

B Series

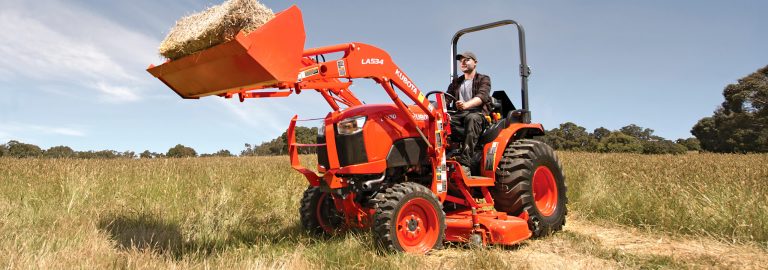

Whether you're mowing, landscaping or doing light utility work, the Kubota B3150 tractors have got you covered. Delivering outstanding performance, fuel economy and reliability, the B3150 features a powerful and economical 31HP diesel engine. Crafted with quality components, the B3150 is available in either open station or cabin configurations. The first tractor it its class to introduce an integrated factory cab, the Kubota B3150HDCC offers unsurpassed luxury and comfort.

Model Comparison

Finance Offers

Download Brochure

22 hp
25.5 hp
26 hp
31 hp
31 hp
31 hp

Product Features

Engine

Front End Loader

View Attachment

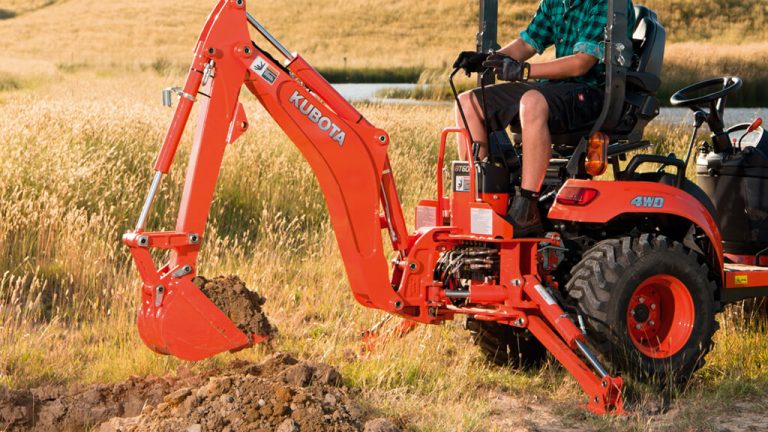

Backhoe

View Attachment

Mid Mount Mower

View Attachment

B50 Series ROPS & CAB tractors in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their B50 Series ROPS & CAB tractors.

Nurturing nature

DTE Issue 4

Power on tap

DTE Issue 1

Specifications

Highlight differences

Download Brochure

Engine

Name	B3150SUHD	B3150HD	B3150HDCC
Fuel Type	Diesel	Diesel	Diesel
Cylinders	4	4	4
Engine Model	Kubota V1505	Kubota V1505	Kubota V1505
Engine Gross	31 hp	31 hp	31 hp
PTO	23.7 hp	23.7 hp	23.7 hp
Displacement	1,498 cc	1,498 cc	1,498 cc
Fuel Tank Capacity	27 l	27 l	27 l
Rated Speed	2,500 rpm	2,500 rpm	2,500 rpm

Drive Train

Name	B3150SUHD	B3150HD	B3150HDCC
Transmission	HST	HST	HST
Ranges	3 Range	3 Range	3 Range
Drive Method	4WD	4WD	4WD
Brakes	Wet Disc	Wet Disc	Wet Disc
PTO 540	2,398 rpm	2,398 rpm	2,398 rpm

Hydraulics

Name	B3150SUHD	B3150HD	B3150HDCC
Hydraulic Pump Output	33.1 l/min	33.1 l/min	33.1 l/min
3-Point Hitch	Category I	Category I	Category I
Rear Linkage Lift Capacity	760 kg	760 kg	760 kg
Steering	Hydraulic Power Steering	Hydraulic Power Steering	Hydraulic Power Steering

Tyre Options

Name	B3150SUHD	B3150HD	B3150HDCC
AG
Industrial
Turf

Travelling Speeds

Name	B3150SUHD	B3150HD	B3150HDCC
Minimum Low Speed	0 km/h	0 km/h	0 km/h
Maximum High Speed	18 km/h	18 km/h	18 km/h

Dimensions

Name	B3150SUHD	B3150HD	B3150HDCC
Length	2,570 mm	2,570 mm	2,900 mm
Width	1,365 mm	1,365 mm	1,365 mm
Height	2,245 mm	2,245 mm	2,150 mm
Wheelbase	1,666 mm	1,666 mm	1,666 mm
Ground Clearance	370 mm	370 mm	370 mm
Turning Radius	2.1 m	2.1 m	2.1 m
Tractor Weight	840 kg	840 kg	840 kg
