RTV-X900G-A
/ RTV-X900W-A
/ RTV-X900W-H

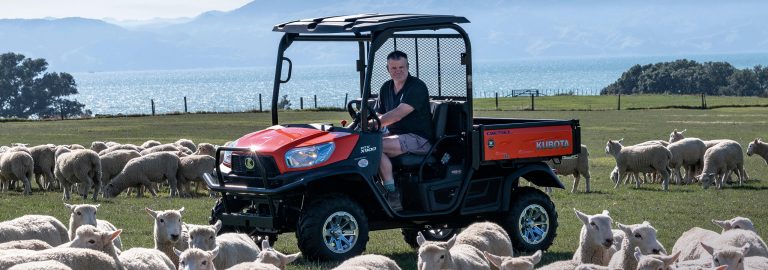

Kubota RTV-X900 Farm Utility Vehicle

Model Comparison Product Features Specifications
Kubota RTV-X900 Farm Utility Vehicle previewKubota RTV-X900 Farm Utility Vehicle
Offering a smooth ride, exceptional drivability and optimum comfort, the Kubota RTV-X900 Series is designed for the operator seeking a new level of efficiency and convenience. Kubota's enrty level diesel utility vehicle range, the RTV-X900 Series offers the ultimate in power and versatility, designed for heavy-duty work in the toughest environments. Powered by Kubota diesel engines and featuring Kubota's unique Variable Hydrostatic Transmission, the RTV-X900 Series delivers best in class reliability, optimum traction and unrivalled control in rugged terrain.

Model Comparison

Finance Offers
Download Brochure
  • 24.8 hp
  • 24.8 hp
  • 24.8 hp
  • 21.6 hp
  • 21.6 hp
  • 21.6 hp
  • 24.8 hp
  • 24.8 hp
  • 24.8 hp

Product Features

kubota previewkubota
1
2
3
4
5
6
7

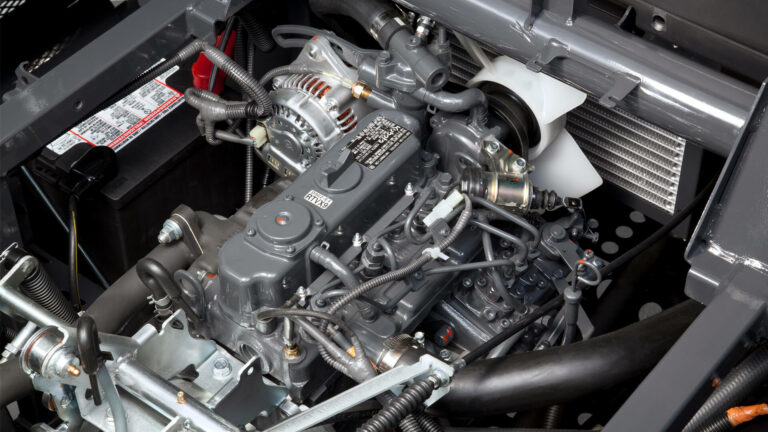

Engine

Engine

Even when the path disappears, you can rely on the RTV-X900 powerful 21.6HP diesel engines to keep you moving forward. Kubota-built and trail-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest terrains.

Engine

Even when the path disappears, you can rely on the RTV-X900 powerful 21.6HP diesel engines to keep you moving forward. Kubota-built and trail-proven, these 3-cylinder liquid-cooled diesel engines have a well-earned reputation for dependable performance even in the harshest terrains.

Engine

Kubota RTV-X900 Farm Utility Vehicle in Kubota Down To Earth

Down to Earth is Kubota's inhouse magazine, which takes a closer look at Kubota's wide range of product offerings and how Kubota customers are utilising and benefitting from them. Across Australia and New Zealand there are thousands of people, all using Kubota machines to assist with their daily lives, in their own way, in some amazing places. Down To Earth shares their stories, stories about the people who are living the Kubota lifestyle. They are the people who are working hard, playing hard, and living life to the fullest. Read their stories here and how they use their Kubota RTV-X900 Farm Utility Vehicle.

Green To Envy previewGreen To Envy

Green To Envy

DTE Issue 4
Nurturing nature previewNurturing nature

Nurturing nature

DTE Issue 4
Able To Sustain A Better Future previewAble To Sustain A Better Future

Able To Sustain A Better Future

DTE Issue 4
In Depth Education previewIn Depth Education

In Depth Education

DTE Issue 1

Specifications

Download Brochure
Engine
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Engine Model Kubota D902 Kubota D902 Kubota D902
Fuel Type Diesel Diesel Diesel
Cylinders 3 3 3
Engine Gross 21.6 hp 21.6 hp 21.6 hp
Displacement 898 cc 898 cc 898 cc
Fuel Tank Capacity 30 l 30 l 30 l
Rated Speed 3,200 rpm 3,200 rpm 3,200 rpm
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Transmission Variable Hydro Transmission Variable Hydro Transmission Variable Hydro Transmission
Drive Method Selectable 4WD Selectable 4WD Selectable 4WD
Brakes Wet Disc Wet Disc Wet Disc
Differential Front Limited-slip differential Limited-slip differential Limited-slip differential
Differential Rear Foot operated differential lock Foot operated differential lock Foot operated differential lock
Gear Selection Hi-Lo Range, forward, neutral, reverse, Hi-Lo Range, forward, neutral, reverse, Hi-Lo Range, forward, neutral, reverse,
Steering Hydrostatic Power Steering Hydrostatic Power Steering Hydrostatic Power Steering
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Front Suspension Independent, Dual A-arms with adjustable spring preload Independent, Dual A-arms with adjustable spring preload Independent, Dual A-arms with adjustable spring preload
Front Suspension Travel 205 mm 205 mm 205 mm
Rear Suspension Independent with coil over shock Independent with coil over shock Independent with coil over shock
Rear Suspension Travel 205 mm 205 mm 205 mm
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Tubular Overhead Structure 50.8 mm 50.8 mm 50.8 mm
Seat Belts 2-point 2-point 2-point
Certification SAE J2194 and OSHA 1928 ROPS SAE J2194 and OSHA 1928 ROPS SAE J2194 and OSHA 1928 ROPS
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Front 25 x 10-12 25 x 10-12 25 x 10-12
Rear 25 x 10-12 25 x 10-12 25 x 10-12
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Maximum High Speed 40 km/h 40 km/h 40 km/h
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Length 3,055 mm 3,110 mm 3,110 mm
Width 1,605 mm 1,605 mm 1,605 mm
Height 2,020 mm 2,020 mm 2,020 mm
Tread Front 1,240 mm 1,240 mm 1,240 mm
Tread Rear 1,240 mm 1,240 mm 1,240 mm
Wheelbase 2,045 mm 2,045 mm 2,045 mm
Turning Radius 4 m 4 m 4 m
Ground Clearance Front 266 mm 266 mm 266 mm
Ground Clearance Rear 263 mm 263 mm 263 mm
Weight 865 kg 895 kg 895 kg
Towing Capacity 590 kg 590 kg 590 kg
Payload Capacity 755 kg 725 kg 725 kg
Name RTV-X900G-A RTV-X900W-A RTV-X900W-H
Material Steel Steel Steel
Length 1,030 mm 1,030 mm 1,030 mm
Width 1,465 mm 1,465 mm 1,465 mm
Depth 285 mm 285 mm 285 mm
Volume 0.43 m3 0.43 m3 0.43 m3
Cargo Bed Capacity 500 kg 500 kg 500 kg
Bed Height 887 mm 887 mm 887 mm
Dumping System Manual with optional hydraulic kit Hydraulic Hydraulic
