Vendro Trailed Rotary Tedders

Model Comparison Product Features Specifications

Rotary Tedders

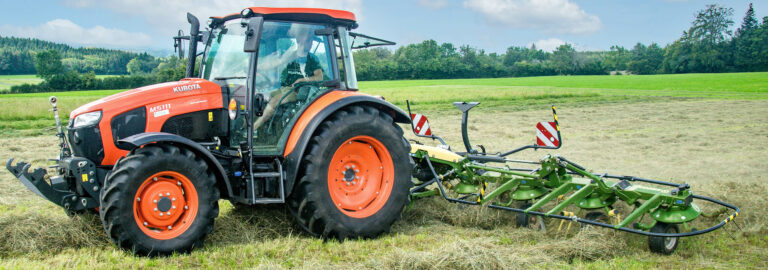

Krone Vendro mounted rotary tedders are available with 4, 6, 8, or 10-rotor tedders covering working widths of 4.70 metres to 11.20 metres, offering the right solution for any farming needs. Thanks to the Vendro's compact frame, the unit sits close to the three-point linkage ensuring a low centre of gravity and making for safe road travel and space-saving storage. All Vendro tedders feature extremely robust and lubrication-free Krone OctoLink finger clutches for enhanced dependability and low maintenance. Also available as a trailing unit with the Vendro T900.

Model Comparison

Finance Offers

Download Brochure

4,700 mm
5,600 mm
6,200 mm
6,800 mm
7,900 mm
8,200 mm
9,000 mm
11,200 mm
8,950 mm

Product Features

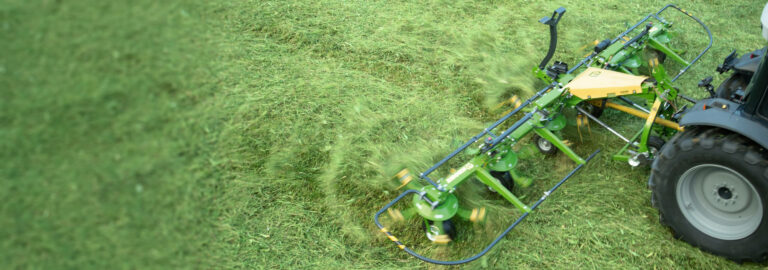

OptiTurn Rotor

The Krone OptiTurn tines features generously overlapping rotors for best crop lift and optimal spread. This ensures fast wilts and optimal animal feed. The two shafts in each pair of tines are unequally long. This ensures their tips are always parallel as they hover above the ground, lifting the material cleanly while preventing contamination.

OptiTurn Rotor

Specifications

Highlight differences

Download Brochure

Dimensions & Weight

Name	Vendro 470	Vendro 560	Vendro 620	Vendro 680	Vendro 790	Vendro 820	Vendro 900	Vendro 1120	Vendro T900
Working Width	4,700 mm	5,600 mm	6,200 mm	6,800 mm	7,900 mm	8,200 mm	9,000 mm	11,200 mm	8,950 mm
Transport Width (approx.)	2,750 mm	2,990 mm	2,750 mm	2,900 mm	2,900 mm	2,900 mm	2,900 mm	2,990 mm	2,900 mm
Storage Height (approx.)	2,450 mm	2,880 mm	3,220 mm	3,470 mm	3,350 mm	3,200 mm	3,460 mm	3,750 mm	N/A
Storage Length (approx.)	2,170 mm	2,480 mm	2,180 mm	2,320 mm	2,380 mm	2,240 mm	2,360 mm	2,530 mm	N/A
Weight	750 kg	785 kg	925 kg	950 kg	1,115 kg	1,240 kg	1,340 kg	1,650 kg	1,560 kg
Rotor Diameter	1,500 mm	1,820 mm	1,370 mm	1,500 mm	1,700 mm	1,370 mm	1,500 mm	1,500 mm	1,500 mm
Tyre Size	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8	16 x 6.50-8 \| 16 x 9.50-8 (central)	16 x 6.50-8 \| 16 x 9.50-8 (central)	16 x 6.50-8 \| 16 x 9.50-8 (central)
Spreading Angle Min.	13 deg	13 deg	13 deg	13 deg	13 deg	13 deg	13 deg	13 deg	13 deg
Spreading Angle Max.	19 deg	19 deg	19 deg	19 deg	19 deg	19 deg	19 deg	19 deg	19 deg
Acreage Output	4.6 m2	5.6 m2	6.2 m2	6.7 m2	7.9 m2	8.2 m2	9 m2	11.2 m2	9 m2

Specifications

Name	Vendro 470	Vendro 560	Vendro 620	Vendro 680	Vendro 790	Vendro 820	Vendro 900	Vendro 1120	Vendro T900
No. of Rotors	4	4	6	6	6	8	8	10	8
No. of Tine Arms	6	7	5	6	7	5	6	6	6
Minimum PTO	35 hp	50 hp	50 hp	60 hp	65 hp	65 hp	75 hp	90 hp	50 hp
Hydraulic Spools	1 SA	1 SA	1 SA	1 SA	1 SA	2 DA	2 DA	2 DA and 15A	2 DA
Linkage Category	Cat II	Cat II	Cat II	Cat II	Cat II	Cat II	Cat II	Cat II	Cat II

Standard Options

Name	Vendro 470	Vendro 560	Vendro 620	Vendro 680	Vendro 790	Vendro 820	Vendro 900	Vendro 1120	Vendro T900
Krone OptiTurn Rotors and OptiTurn Curved 3D Tine									N/A
9.5 mm Rod
Heavy Duty Tine Arms
Boundary Spreading with Central Lever	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Hydraulic	Hydraulic	Hydraulic	N/A
Damper Braces	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Mechanical \| Opt. Hydraulic	Hydraulic	Hydraulic	Hydraulic	N/A
Quick Hitch
5mm Tubular Tine Arms
Octolink (maintenance free 8 finger clutch)
Rotor Gearbox
Strong Headstock
Warning Panels
Parking Stands	2	2	2	2	2	2	2	2
Drive Shaft 1 3/8" 6 Splines with Overload Clutch
Liquid Grease Gearboxes

Standard Extras

Name	Vendro 470	Vendro 560	Vendro 620	Vendro 680	Vendro 790	Vendro 820	Vendro 900	Vendro 1120	Vendro T900
Spare Wheel with Machine	Option	Option	Option	Option
Light Kit	Option	Option	Option	Option
