721G

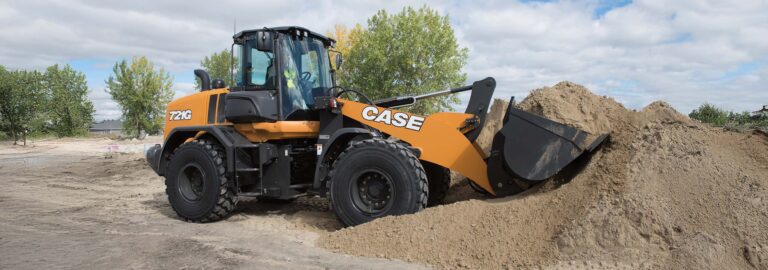

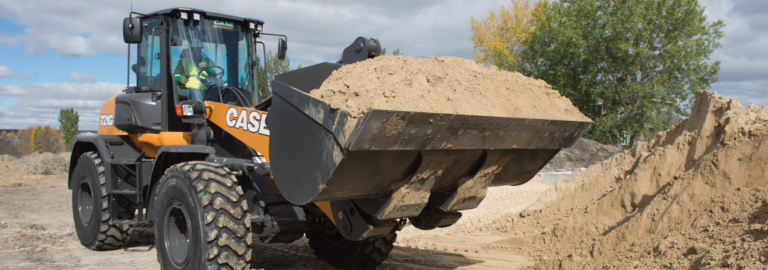

CASE 721G Wheel Loader

The CASE 721G brings more power, faster hydraulic response and a more planted feel for operators who need dependable performance on heavy loading jobs. Its FPT engine provides solid torque for digging into tough stockpiles and lifting heavier buckets, while the cooling cube keeps temperatures stable in demanding Australian conditions. The transmission delivers clean, predictable gear changes, allowing the loader to hold steady speed on haul roads and maintain smooth control during load and carry work. With sharp hydraulic action and well balanced steering, the CASE 721G gives operators a confident feel through every stage of the cycle. The machine tracks well across uneven ground and holds firm when carrying large volumes of material, making it reliable across civil sites, quarry work, waste facilities and large farming operations.

Model Comparison

Finance Offers

Download Brochure

145 kW (194.4 hp)

Product Features

The CASE 721G can be tailored for a wide range of applications with linkage choices, bucket options and quick couplers that let operators switch tasks easily. The load sensing hydraulic system keeps movements smooth even when running multiple functions, supporting fast cycle times and consistent performance. Tyre choices and attachment compatibility make the machine adaptable for stockpiling, bulk loading, truck filling or general site duties. Inside the cab, operators benefit from low noise levels, wide visibility and an eight inch display that provides clear machine information. The seating position, joystick placement and clean control layout are designed to reduce fatigue, allowing crews to work longer hours without strain. The service layout is straightforward with ground level access and a tidy design that keeps routine tasks fast. This combination of comfort, versatility and ease of maintenance makes the CASE 721G a productive option for crews working long days.

High Performance Output

The CASE 721G delivers strong breakout force and smooth bucket control, helping operators work quickly through heavy loading tasks. Its hydraulic system responds cleanly under load, allowing the machine to fill, lift and carry material with steady pace across quarry sites, civil jobs and other high demand environments.

High Performance Output

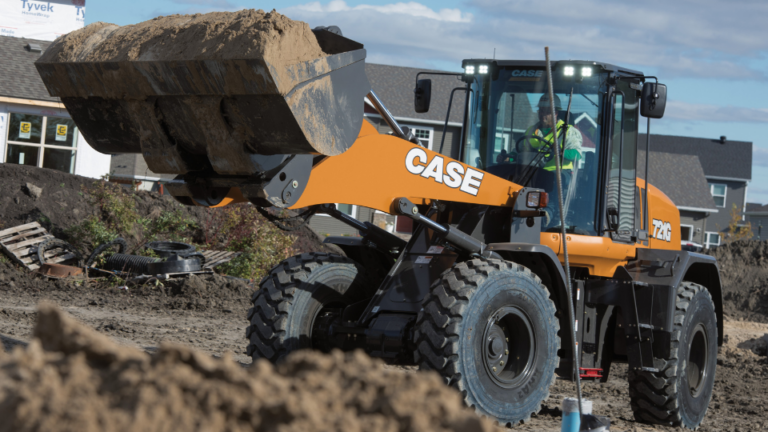

Confident Control on All Terrain

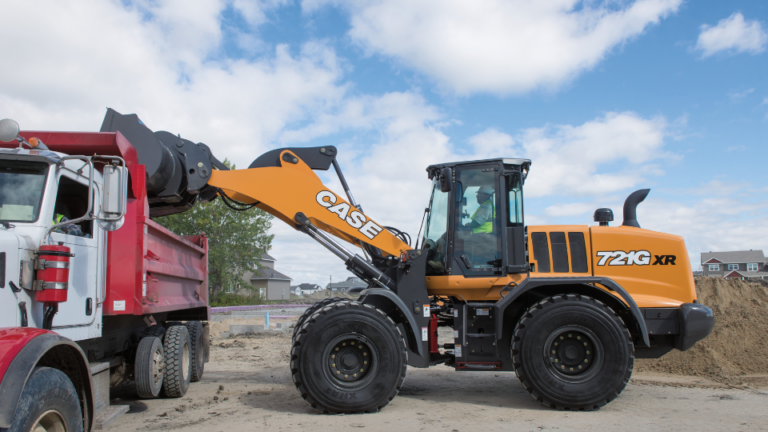

Fast Cycle Times

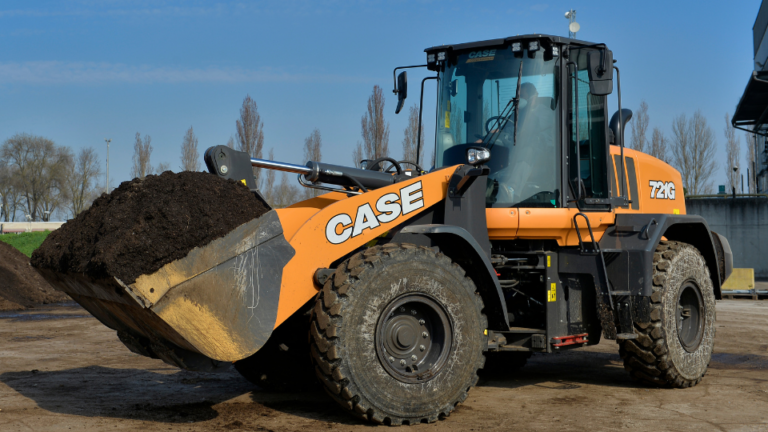

Strong Traction for Heavy Work

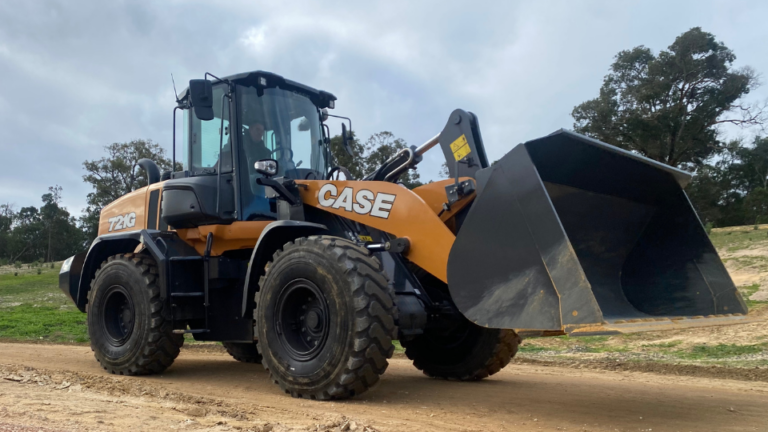

Built for Long, Hard Days

Specifications

Download Brochure

Engine

Name	721G
Maker & Model	FTP N67
No. of cylinders	6
Displacement (l)	6.7
Air intake	Turbocharger with air-to-air cooling. No EGR valve is used: Only fresh air is taken for combustion and no extra cooling system is needed.
Injection	Common Rail Multiple Injection.
After Treatment System	HI-eSCR 2 (DOC+SCRoF)
Emission level	Compliant with EU Stage V
Maximum power	145 kW (194.4 hp)
@ Engine speed (ISO 14396) (rpm)	2000
Maximum Torque	950 Nm
@ Engine speed (ISO 14396) (rpm)	2000

Transmission

Name	721G
ProShift	5-speed powershift with lock up (optional). Lock up clutch eliminates torque converter losses from second gear up to fifth gear. Intelligent Clutch Cut Off (ICCO) with Power Inch: Proportional declutching.
4-speed ZF Powershift	with Intelligent Clutch Cut Off (ICCO)

Axles

Name	721G
Heavy Duty ZF Axles with Limited Slip Differential on both front and rear axle
Heavy Duty ZF Axles with automatic 100% differential lock on front and open
Heavy Duty ZF Axles with automatic 100% differential lock on front and LSD on rear axle
Standard ZF Axles with Limited Slip Differential on both front and rear axle
Axles oscillation angle (total) (°)	24

Tires

Name	721G
Standard tire’s size	20.5R25

Brakes

Name	721G
Service brake	Maintenance free, self-adjusting wet 4-wheel disc brakes.
Service brake disc area	0.39 m²/hub
Parking brake	With the negative brake all four wheels are automatically stopped when the engine is stopped.
Parking brake disc area	82 cm²

Hydraulics

Name	721G
Loader control valve	Bosch-Rexroth, closed center, load sensing/flow sharing.
Steering	Steering cylinders actuated by hydraulic orbitrol under priority valve, controlled, in turn, by active load sensing signal.
Loader controls	Pilot with proportional solenoid valves controlled by electro-hydraulic single joystick or single-axis 2/3 levers.
Pump type	Single, variable displacement
Max oil flow	206 l/min
@ engine speed	2,000 rpm

Auxiliary Hydraulics

Name	721G
Max oil flow (l/min)	206
Max pressure (bar)	249 - 255

Fluid Capacities

Name	721G
Fuel tank, usable volume	246 L
DEF (AdBlue®) tank	41.3 L
Engine coolant	28 L
Engine oil	13 L
Hydraulic oil tank	91 L
Total hydraulic system oil	180 L
Front and Rear Axles (l)	35+35
Transmission oil	34 L

Cab Protection

Name	721G
Protection against falling objects (FOPS)	According to ISO EN 3449 std.
Protection against roll-over (ROPS)	According to ISO EN 13510 std.

Noise and Vibration

Name	721G
In the cab - LpA (dB) (ISO 6396-2008)	68
Outside - LwA (dB) (2000/14/EC)	103
Vibrations	Operator ‘s seat meets the criteria of ISO 7096:2000. The vibrations transmitted do not exceed 0.5 m/s²

Electrical System

Name	721G
System voltage	24 V
Batteries (n° x V)	2 x 12
Alternator - capacity	120 A
