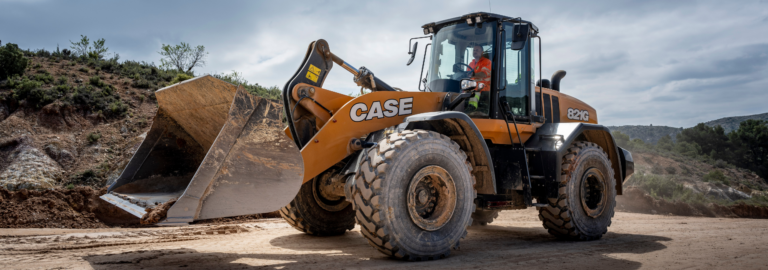

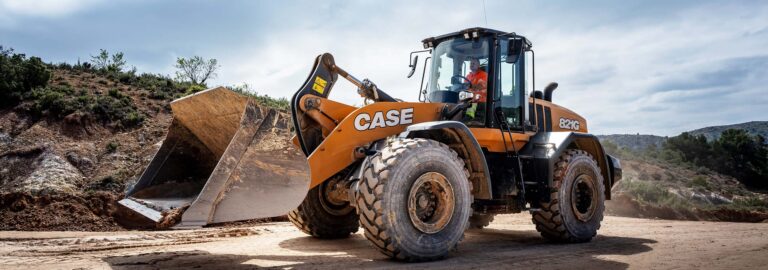

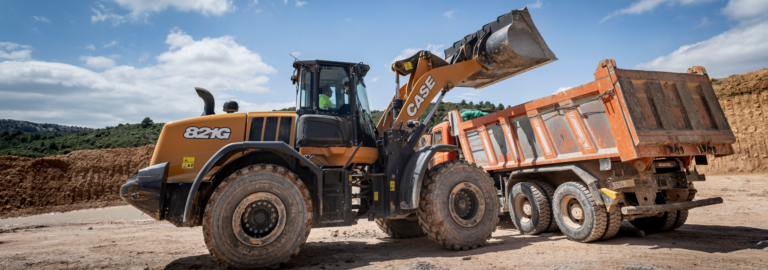

CASE 821G Wheel Loader

The CASE 821G brings stronger engine output, firmer digging power and a more planted feel for operators who need serious loading performance. Its FPT engine delivers steady torque for heavy bucket work and keeps pace during continuous load and carry cycles. The cooling cube layout helps maintain stable temperatures across long shifts, allowing the machine to run confidently in hot and dusty Australian conditions. Hydraulic response is sharp and predictable, giving operators smooth lift action and strong breakout force even in tough, compacted material. The loader remains stable when travelling with large loads, and the steering feel stays consistent across uneven ground, helping crews maintain accuracy in busy quarries, civil projects and waste handling sites.

Model Comparison

Finance Offers

Download Brochure

172 kW (230.7 hp)

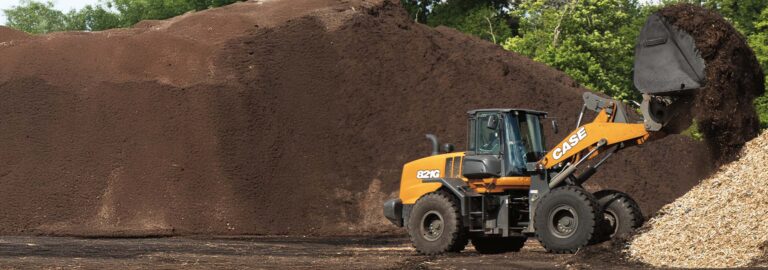

Product Features

The CASE 821G supports a wide range of attachments and linkage options, making it suitable for high volume loading, stockpiling, bulk handling and general purpose site work. The load sensing hydraulic system provides clean, responsive control that supports fast cycle times and efficient operation, while tyre and bucket options let owners tailor the machine to suit specific material and site demands. Inside the cab, operators benefit from low noise levels, an eight inch display and a comfortable seating position that keeps controls within easy reach. Visibility is broad and clear, which improves safety when working around trucks and other equipment. The service layout is simple and accessible from ground level, keeping daily checks quick and helping reduce downtime across long working weeks.

High Capacity Performance

The CASE 821G delivers strong digging power and fast hydraulic response, allowing the loader to lift, carry and place large volumes of material with ease. Its engine output and breakout force give operators the confidence to push into dense piles, fill the bucket cleanly and maintain a quick working rhythm across demanding sites.

High Capacity Performance

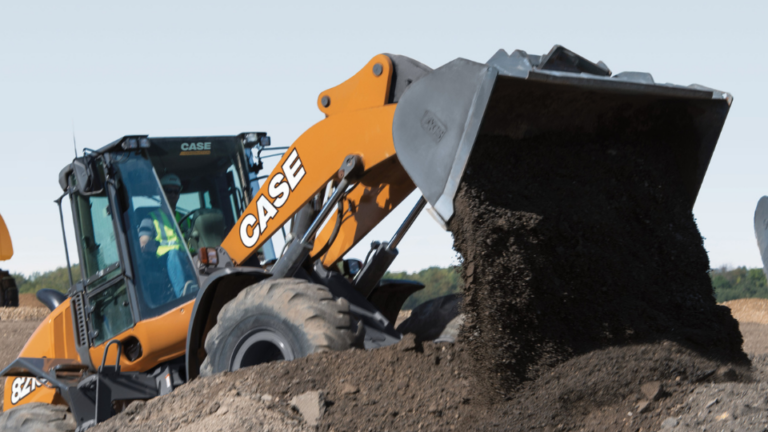

Confident Control in Heavy Material

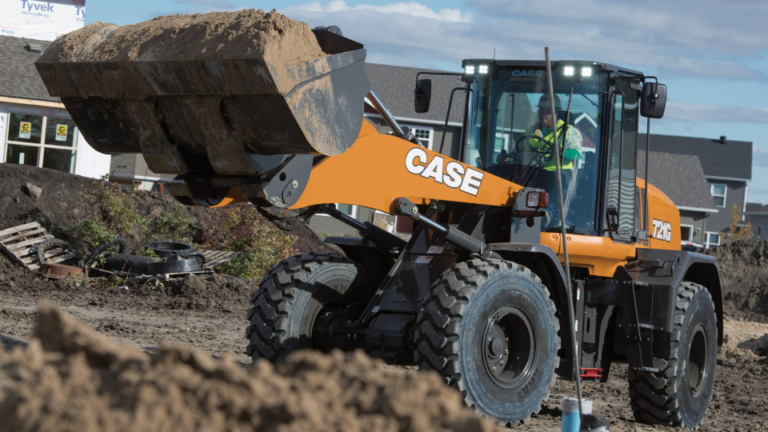

Fast Work Cycles

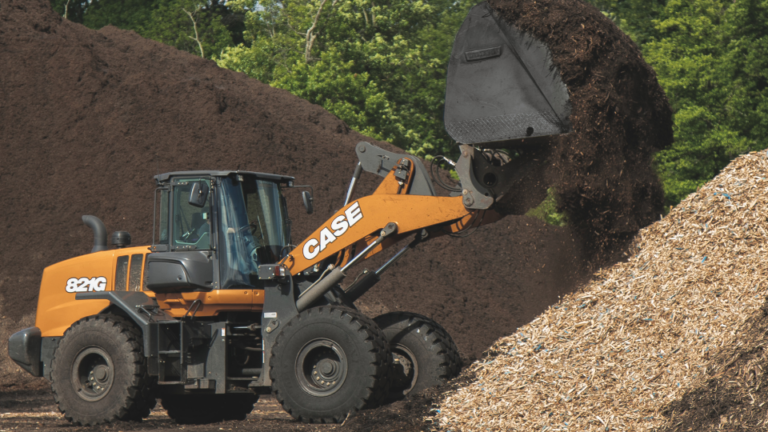

Reliable Grip Under Pressure

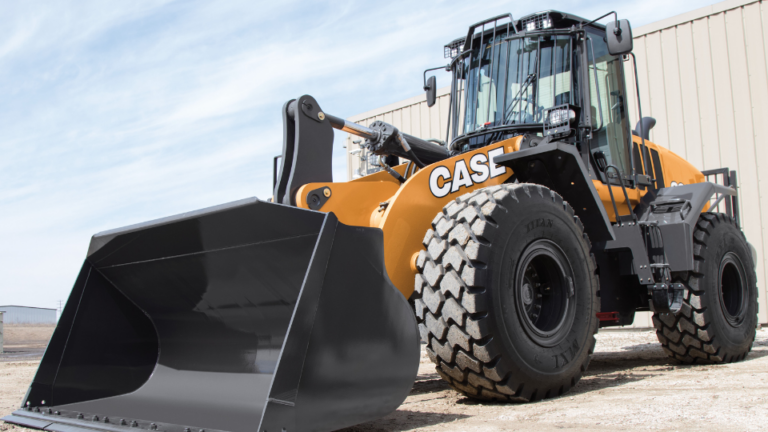

Built for Tough Environments

Specifications

Download Brochure

Engine

Name	821G
Maker & Model	FTP N67
No. of cylinders	6
Displacement (l)	6.7
Air intake	Turbocharger with air-to-air cooling. No EGR valve is used: Only fresh air is taken for combustion and no extra cooling system is needed.
Injection	Common Rail Multiple Injection.
After Treatment System	HI-eSCR 2 (DOC+SCRoF)
Emission level	Compliant with EU Stage V
Maximum power	172 kW (230.7 hp)
@ Engine speed (ISO 14396) (rpm)	1800
Maximum Torque	1,184 Nm
@ Engine speed (ISO 14396) (rpm)	1800

Transmission

Name	821G
ProShift	5-speed powershift with lock up (optional). Lock up clutch eliminates torque converter losses from second gear up to fifth gear. Intelligent Clutch Cut Off (ICCO) with Power Inch: Proportional declutching.
4-speed ZF Powershift	with Intelligent Clutch Cut Off (ICCO)

Axles

Name	821G
Heavy Duty ZF Axles with Limited Slip Differential on both front and rear axle
Heavy Duty ZF Axles with automatic 100% differential lock on front and open
Heavy Duty ZF Axles with automatic 100% differential lock on front and LSD on rear axle
Standard ZF Axles with Limited Slip Differential on both front and rear axle
Axles oscillation angle (total) (°)	24

Tires

Name	821G
Standard tire’s size	23.5R25

Brakes

Name	821G
Service brake	Maintenance free, self-adjusting wet 4-wheel disc brakes.
Service brake disc area	0.39 m²/hub
Parking brake	With the negative brake all four wheels are automatically stopped when the engine is stopped.
Parking brake disc area	82 cm²

Hydraulics

Name	821G
Loader control valve	Bosch-Rexroth, closed center, load sensing/flow sharing.
Steering	Steering cylinders actuated by hydraulic orbitrol under priority valve, controlled, in turn, by active load sensing signal.
Loader controls	Pilot with proportional solenoid valves controlled by electro-hydraulic single joystick or single-axis 2/3 levers.
Pump type	Tandem, variable displacement
Max oil flow	236 l/min
@ engine speed	2,000 rpm

Auxiliary Hydraulics

Name	821G
Max oil flow (l/min)	236
Max pressure (bar)	249 - 255

Fluid Capacities

Name	821G
Fuel tank, usable volume	288 L
DEF (AdBlue®) tank	41.3 L
Engine coolant	30 L
Engine oil	13 L
Hydraulic oil tank	91 L
Total hydraulic system oil	180 L
Front and Rear Axles (l)	40+40
Transmission oil	34 L

Cab Protection

Name	821G
Protection against falling objects (FOPS)	According to ISO EN 3449 std.
Protection against roll-over (ROPS)	According to ISO EN 13510 std.

Noise and Vibration

Name	821G
In the cab - LpA (dB) (ISO 6396-2008)	68
Outside - LwA (dB) (2000/14/EC)	104
Vibrations	Operator ‘s seat meets the criteria of ISO 7096:2000. The vibrations transmitted do not exceed 0.5 m/s²

Electrical System

Name	821G
System voltage	24 V
Batteries (n° x V)	2 x 12
Alternator - capacity	120 A
